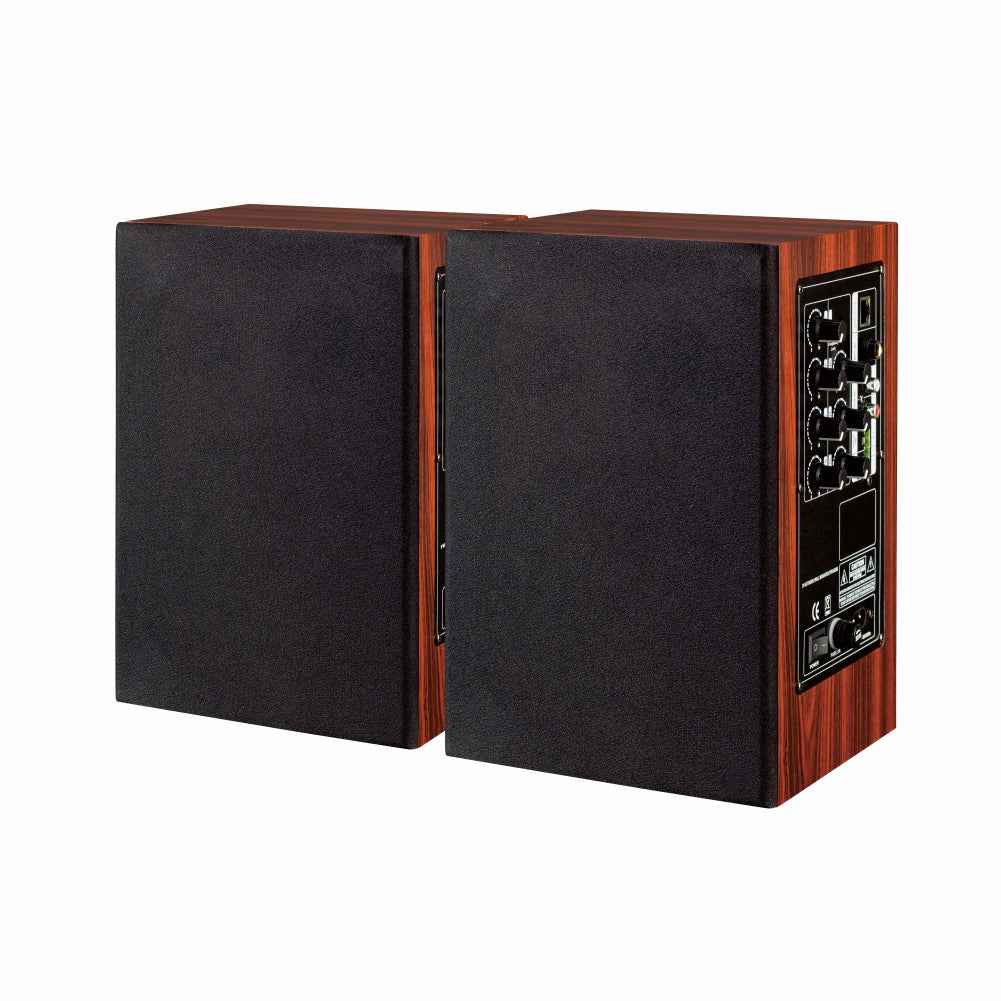

CMX DI-9723P IP Network Powered Speaker

DI-9723P is one IP based active speaker, built-in ip decoder, amplifier and speaker all in one solution, work with IP audio software, IP paging call station to set up multiple zone up to 600 IP audio solutions.

IP Network Powered Speaker

DI-9723P

Features:

• POE (Power over Ethernet) supportable all in one network audio system

• POE IP PA system with background music, paging system and voice alarmsystem

• Minimum cable connection over existing LAN/WAN/Internet system

• Huge system capacity up to 1,200 zones

• Support with existing POE switch network system

• Compatible with IEEE 802.3at POE standard

• IP based POE powered 20W+20W 6.5”+1.5” two way loudspeaker system

• Built-in IP audio decoder, 20W+20W stereo amplifier and speaker

• Single network cable for control, signal and power supply

• Same POE speakers enable to be several group or zone defined

• Different music or voice message simultaneously broadcasted through different POE speaker

• Paging prioritization and background music system

• Network adjustable speaker volume

• 12V DC power supply input as standby use


Description

IP-9723P is IP powered speaker is an all in one network audio system solution, which is the most convenient audio over internet solution of which no signal cable and no speaker cable wiring is needed. The simplest connection is plug in the RJ45 communication port via CAT6 cable over existing LAN/WAN/Ethernet network, input source, paralleled connect with another passive speaker DI-9723F, power on, then it can communicate with the server and enable all functions of a network audio system. IP-9723 The IP network active speaker is built-in audio decoder, an active speaker with stereo 20W+20W digital amplifier to power another 20W passive speaker DI-9723F. The connectors of this active speaker include one communication control port by RJ45, one 20w power output to amplify another passive speaker, AC power switch, one status and one power indicators. Aux & Mic input & attenuators, with silent/bass/treble/master/Echo attenuators, thus external microphone or media player from local room could be played via this IP loudspeaker. The IP network active speaker is of wall mount design, so it cloud be installed in anywhere of the non-dedicated network. It is high economy solution to use one this package for each classroom, hospital, prison and office such multiple room applications. The biggest advantages of the network audio system are: Super distance audio transmission, simultaneous maximum program task and non-dedicated network wiring. Optional versions of Simplified economy version DI-9723C+DI-9723F and Wireless Teaching system version DI-9723G+DI-9723F, 100V in from analog PA system to auto standby as backup when IP PA system failure.

Specifications:
