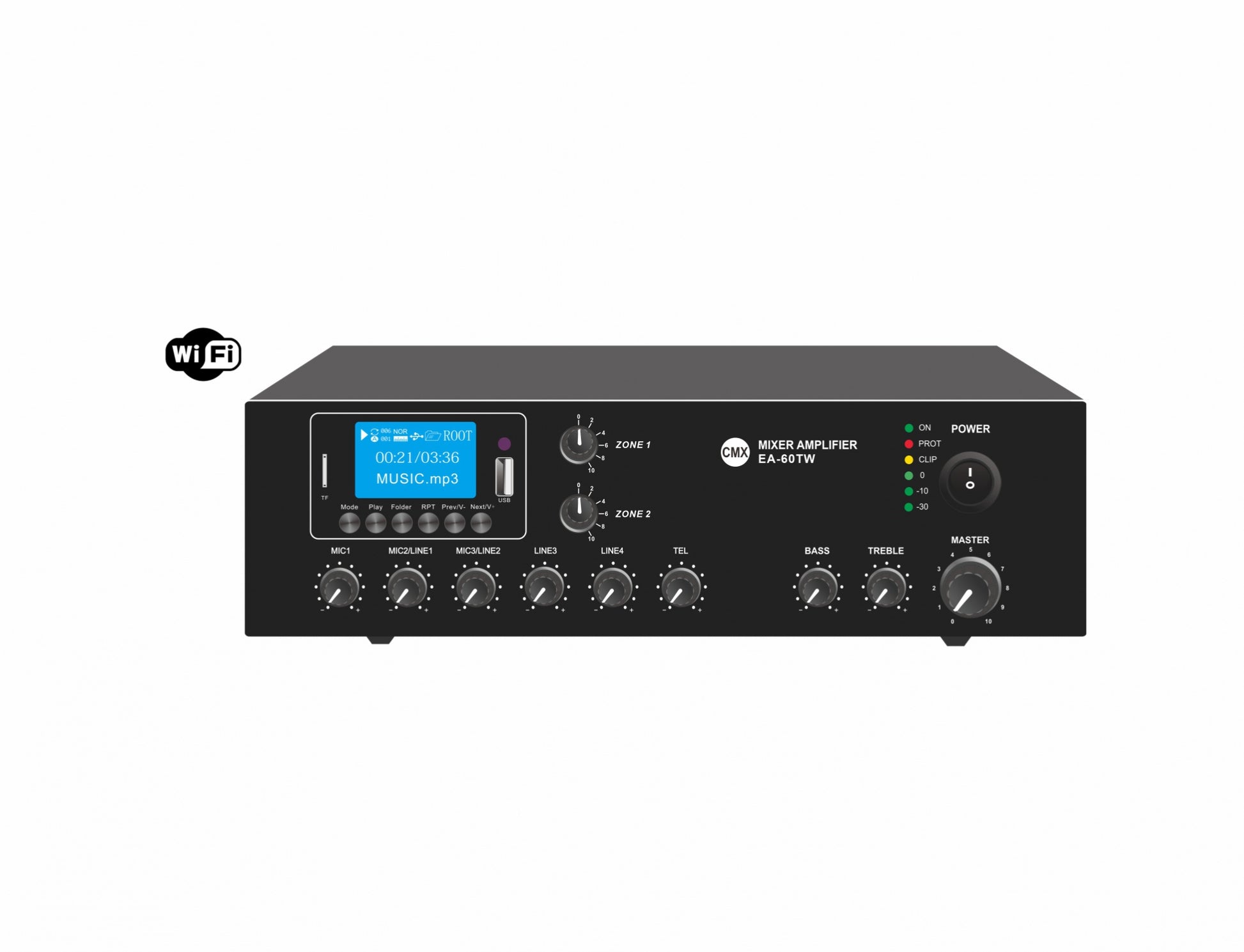

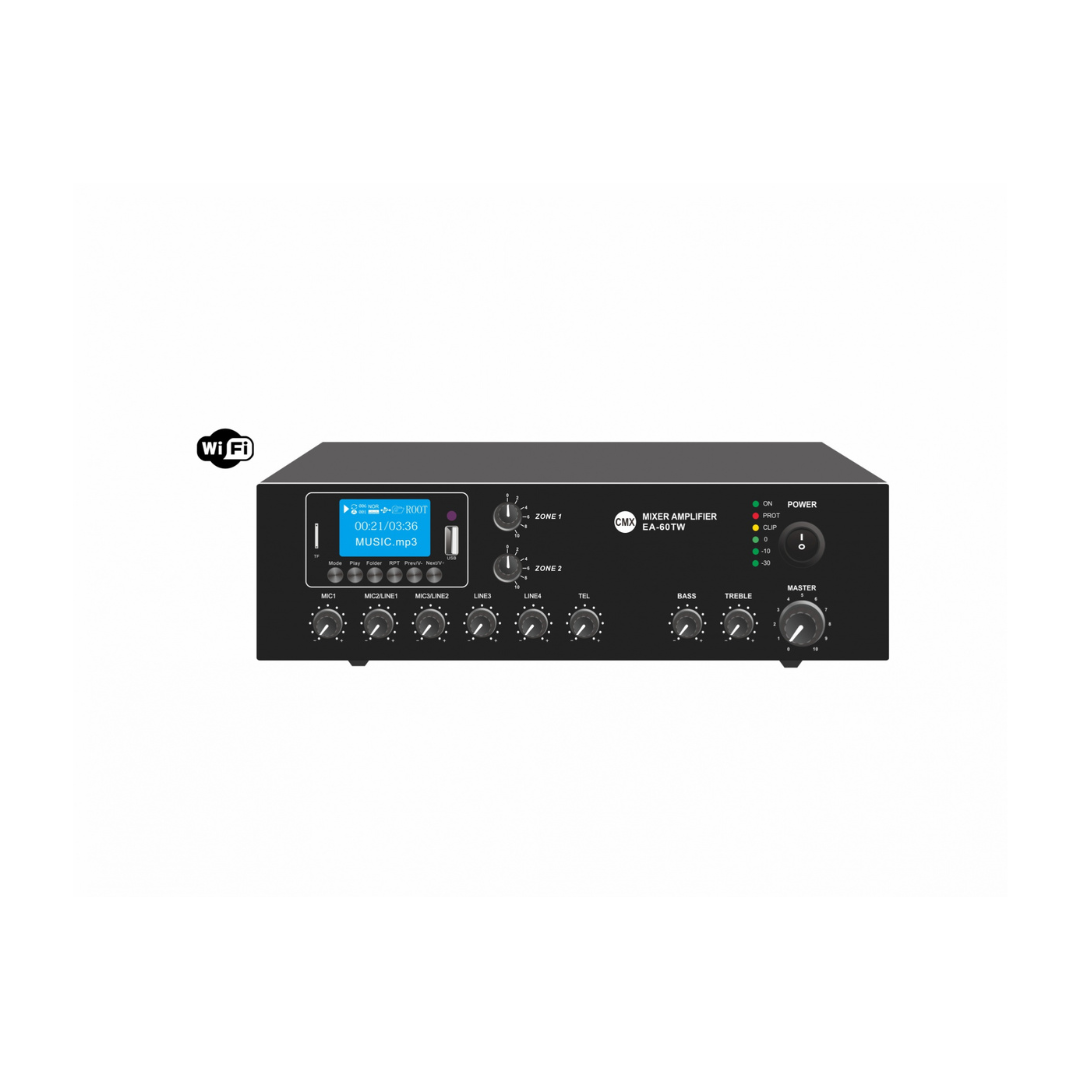

CMX EA-TW Series Wi-Fi 2 Zone Mixer Amplifier with MP3/FM/Bluetooth (EA-30TW / EA-60TW / EA-120TW)

CMX EA-TW Series Wi-Fi 2 Zone Mixer Amplifier with MP3/FM/Bluetooth (EA-30TW / EA-60TW / EA-120TW)

Rs. 31,145.00
Rs. 31,145.00
Tax included. Shipping calculated at check out.

The Wi-Fi 2 Zone Mixer Amplifier with MP3, FM tuner & blue tooth, its rated power output from 30W, 60W to 120W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, pre amplifier and mixer power amplifier into one unit, which is economy but of high reliable performance. It integrates 2 audio sources into a mixer amplifier, plus Mic1(XLR) and Mic/Line input 2-3 (6.3mm Jack), two line inputs, one Tel input and one line output. Mic1 VOX with highest priority except Tel input. One USB and one SD slots on front provide easy access and operation for installer and end-user. 2 speaker zones 100V outputs enable to divide the multiple loudspeakers for two separate zones of different volume control or on/off control. The total two zone speaker loading shall be 80% of the amplifier rated power output. The 2 zone mixer amplifier is designed with complete protection of overload, short circuit and high temp to avoid any damage. These amplifiers are suitable for applications in bank, mosque, school, hotel, restaurant, theme centers and shopping center.

Features

  • Compact Wi-Fi 2 zone public address mixer amplifier
  • Tabletop Wi-Fi 2 zone mixer amplifier with Mp3 player, FM radio & blue tooth
  • Wi-Fi streaming amplifier with smart phone control
  • Free Wi-Fi Legacy Player app for Android or iOS
  • With LAN port and WPS to reset Wi-Fi address
  • Rate power output at 30W, 60W to 120W
  • Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
  • 2 zone speaker outputs of 100V with separate zone attenuator
  • Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
  • LED indicators for power, clip, protect and signal
  • Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
  • Mic/line 2-3 switchable input unbalanced 6.3mm jack
  • Line 1-2 input of RCA input and one RCA line output
  • Telephone input with secondary priority and MOH (Music on Hold)
  • Volume control for Mic1-3, line1-2, TEL, bass/treble and master
  • Complete amplifier protection includes short-circuit, clip, overload and high temp
  • 110-230V AC & 24V DC both power supply system
  • Optional to add DAB & DAB+ module

Specification:

Model

 EA-30TW EA-60TW EA-120TW

Description

 2 Zone Mixer Amplifier with USB/SD/FM/Blue Tooth
Rated Power Output  30W 60W 120W

Speaker Outputs

100V or 70V & 4 Ohm-8 Ohm-16 Ohm

Two Zone speaker outputs of 100V with separate zone attenuator
Connector

Mic1 input by balanced XLR with phantom power & VOX highest priority

Mic/line switchable input 2-3 unbalanced 6.3mm jack

Telephone input with secondary priority and MOH (Music on Hold)

Line1-2 inputs by RCA; Line output by RCA

Input

 MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Out  0.775(0dBV)
Frequency Response  60Hz-15kHz(±3dB)
S/N Ratio  Line ≥ 85dB, Mic≥ 72dB
THD Less than 0.5%
Protection Short-circuit, clip, overload and high temp protection
Power Consumption 60W 100W 200W
Power Supply  110-230V AC & 24V DC; 50-60Hz
Dimension  320×210×90mm
Net Weight  3.35kg 3.95kg 4.60kg
