CMX PA-MX Series 4 Zone Mixer Amplifier with USB/SD/FM/Bluetooth (PA-4120MX / PA-4240MX / PA-4350MX / PA-4500MX)

Description:

The PA-4500MX series 4 zone mixer amplifier is designed for 19” rack mount installation or tabletop use both application, it is ideal for both professional sound system and commercial audio solutions, since it is designed with 4 zone speaker outputs support 100V & 8-16Ω. The PA-4500MX series mixer amplifier integrates two 100V & 8 Ω amplifier into one unit, so it could be used as stereo mixer amplifier or 4 zone commercial mixer amplifier. The mixer amplifier is built-in media player of USB/SD/FM/ & Bluetooth, with 3 mic inputs, line input, EMC input, 8 units 4 zone

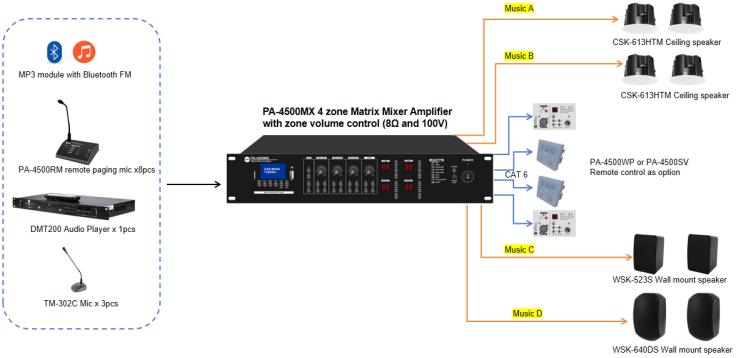

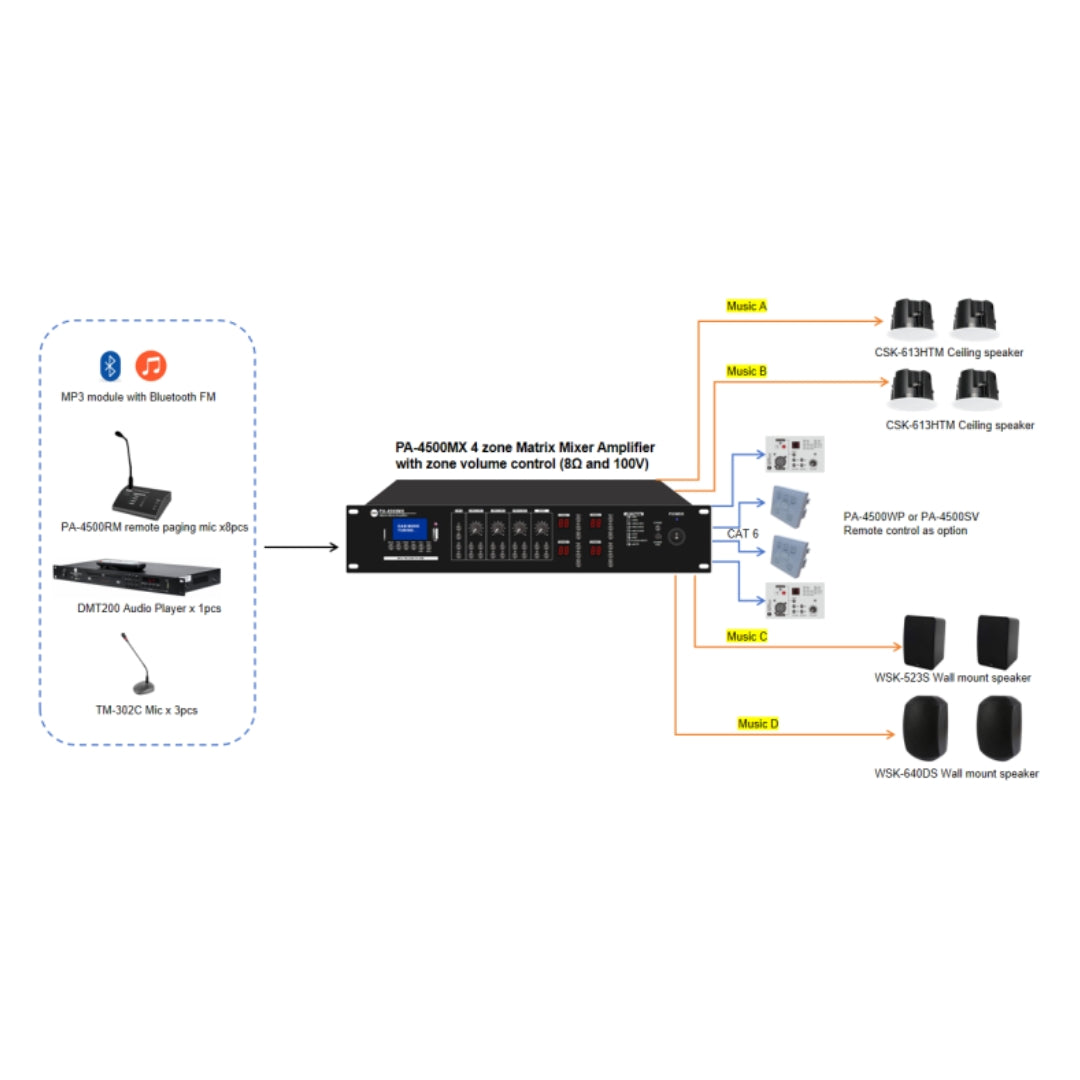

remote paging mic PA-4500RM and 4 units remote panel PA-4500WP or remote panel PA-4500SV and one mute input. 3 Mic/line switchable inputs, 1 aux input and an integral USB/SD/FM audio player with Bluetooth receiver can be matrix switched to any of the 4 zones independently. Mic1 channel with VOX highest priority and each microphone 1-3 inputs have switchable +48V phantom power. A master chime with volume can be used for paging calls and Alerts. The 4 zone mixer amplifier is designed for multi-room commercial audio systems requiring different audio sources & multiple paging microphones, additionally, up to 8 units remote microphones and 4 units remote control panel could be connected to this 4 zone mixer amplifier through CAT6 cable , which could be installed in four separate rooms to select different audio sources locally and adjust the local loudspeaker loudness and input Bluetooth to its own room. The mute input could integrate with fire alarm system or other third party system. The amplifier is designed with complete protection includes short-circuit, clip, overload and high temp.

 Features:

• Multi-room commercial audio systems requiring different audio sources & multiple paging microphones

• 4 zone mixer amplifier built-in USB/SD/FM/Bluetooth audio player

• 4 zone mixer amplifier built-in 4 channel power amplifier & 4 channel audio matrix

• Support both 100V or 8-16 Ohms speaker applications

• 4 independent output zones with attenuation

• 3 mic/line inputs, 1 aux input & an integral audio player matrix switched to any of the 4 zones independently

• 3 mic/line switchable input with +48V phantom power balanced COMBO XLR

• Each input with bass/treble includes 3 mic/line & 1 auxiliary input

• With emergency remote mute input

• Input priority level from high to low: Mute, EMC, Mic1 and remote paging mic to others inputs

• Up to 8 remote microphones PA-4500RM connection to the amplifier through CAT6 cable

• Up to 4 remote control panels PA-4500WP or PA-4500SV connection to the amplifier through CAT6 cable

• Remote control panel PA-4500WP select source, adjust volume and 1 line input and 1 mic input

• With complete protection includes short-circuit, clip, overload and high temp


 Specifications:
