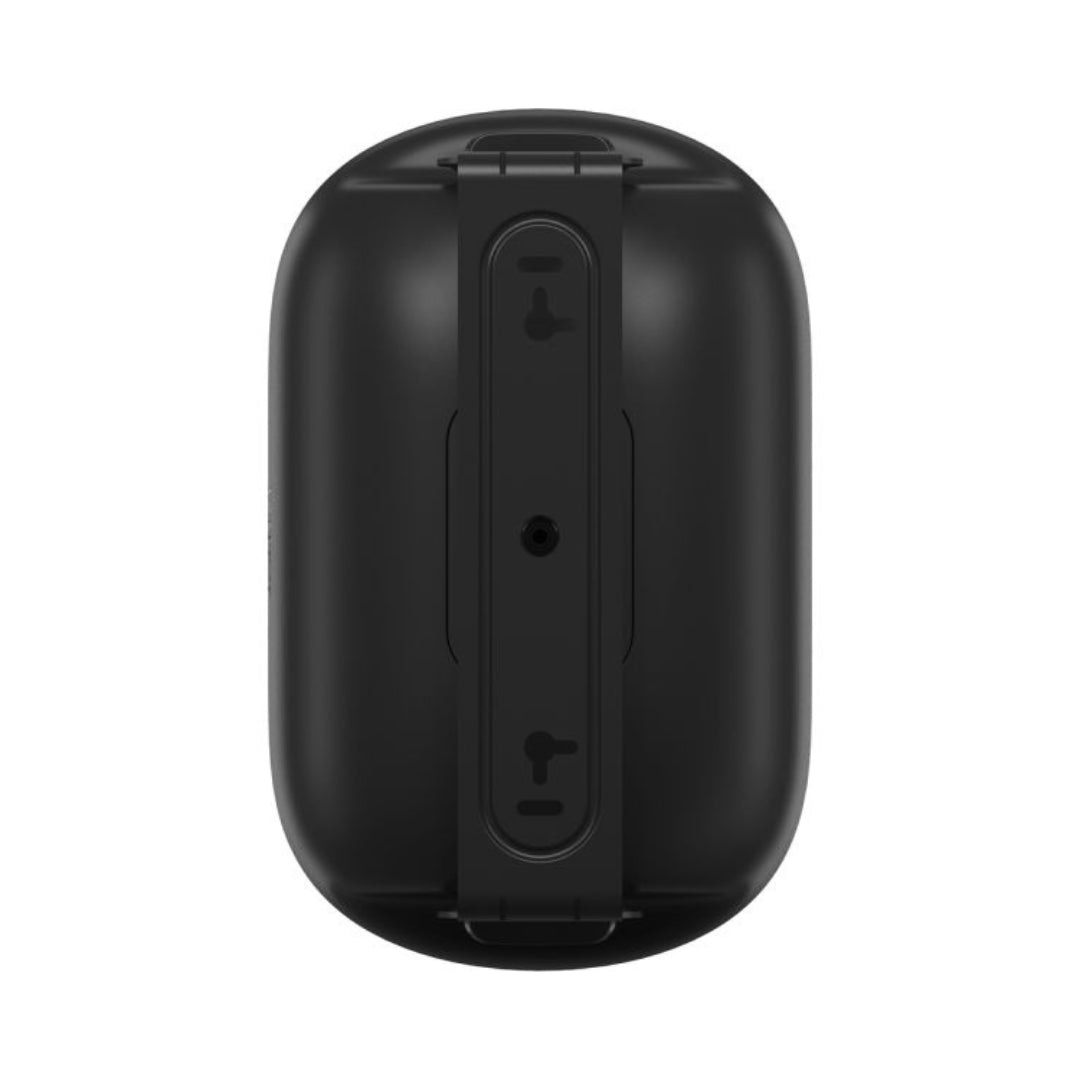

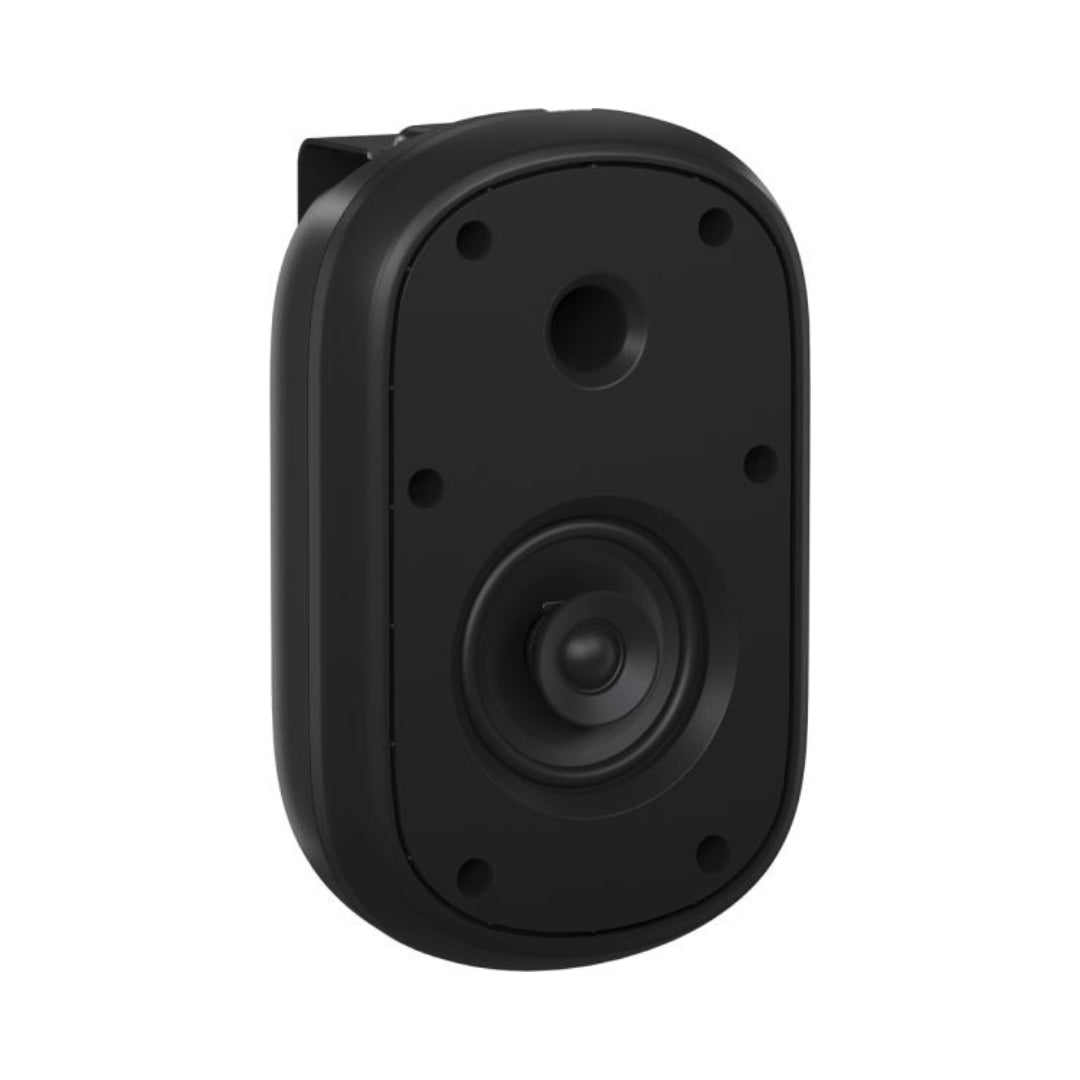

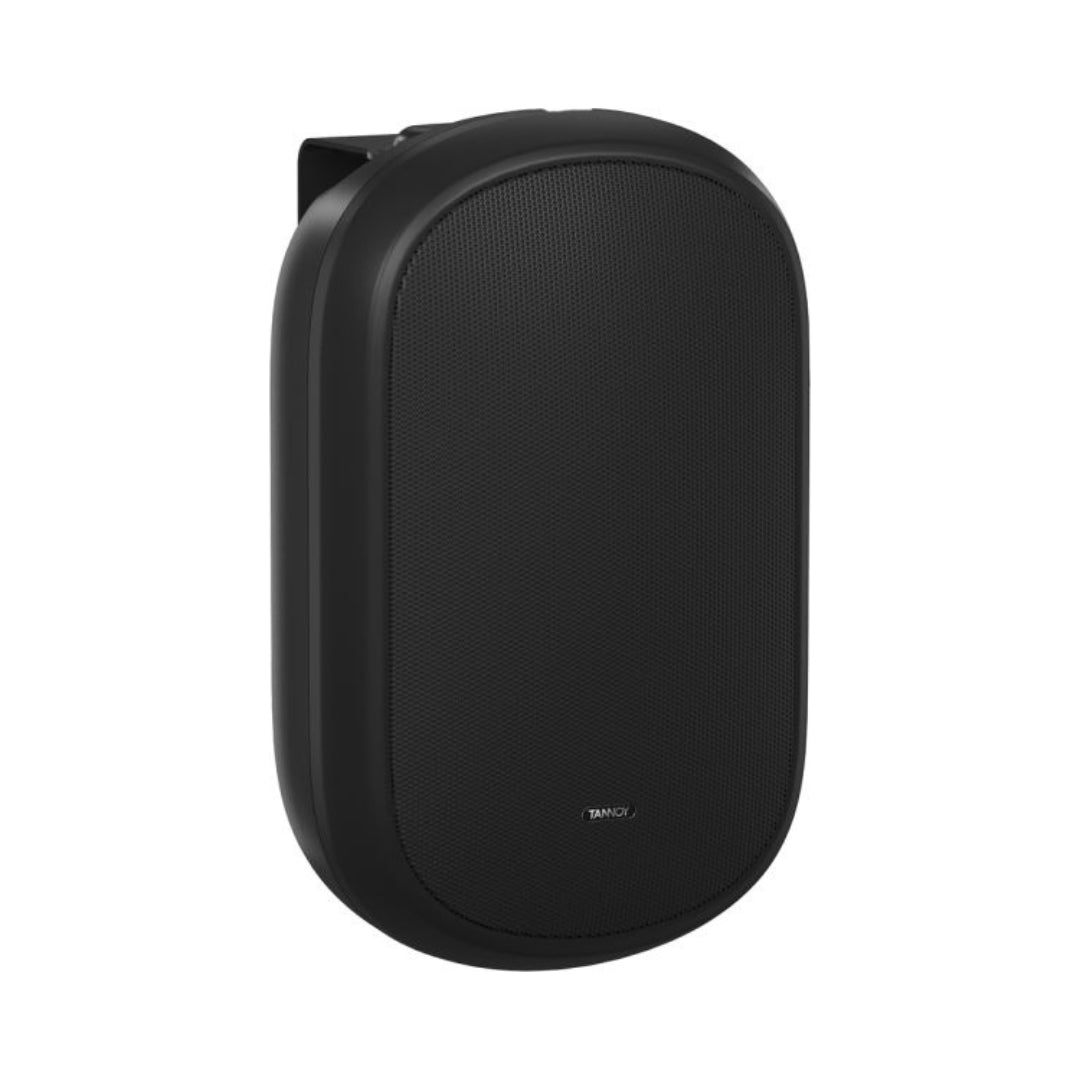

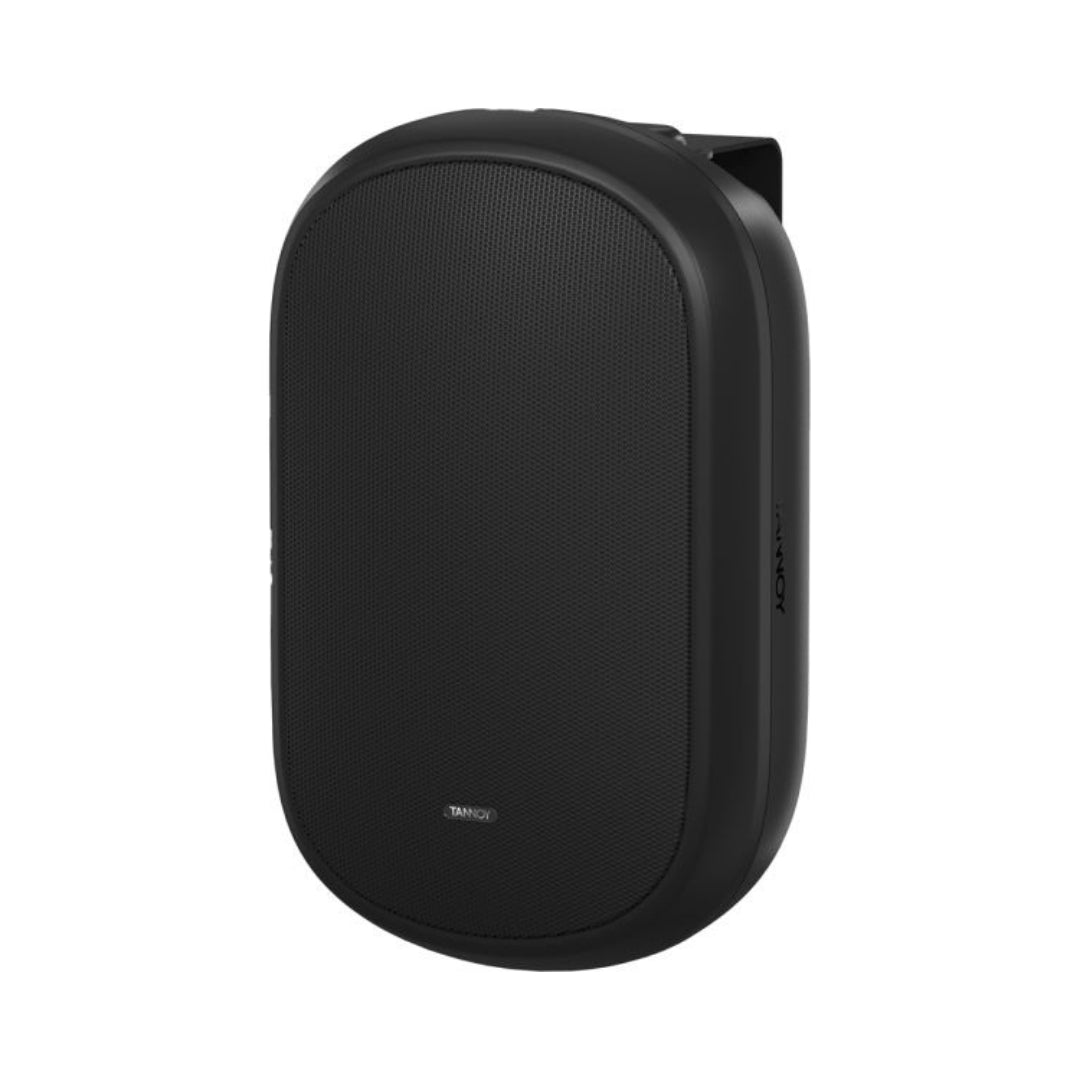

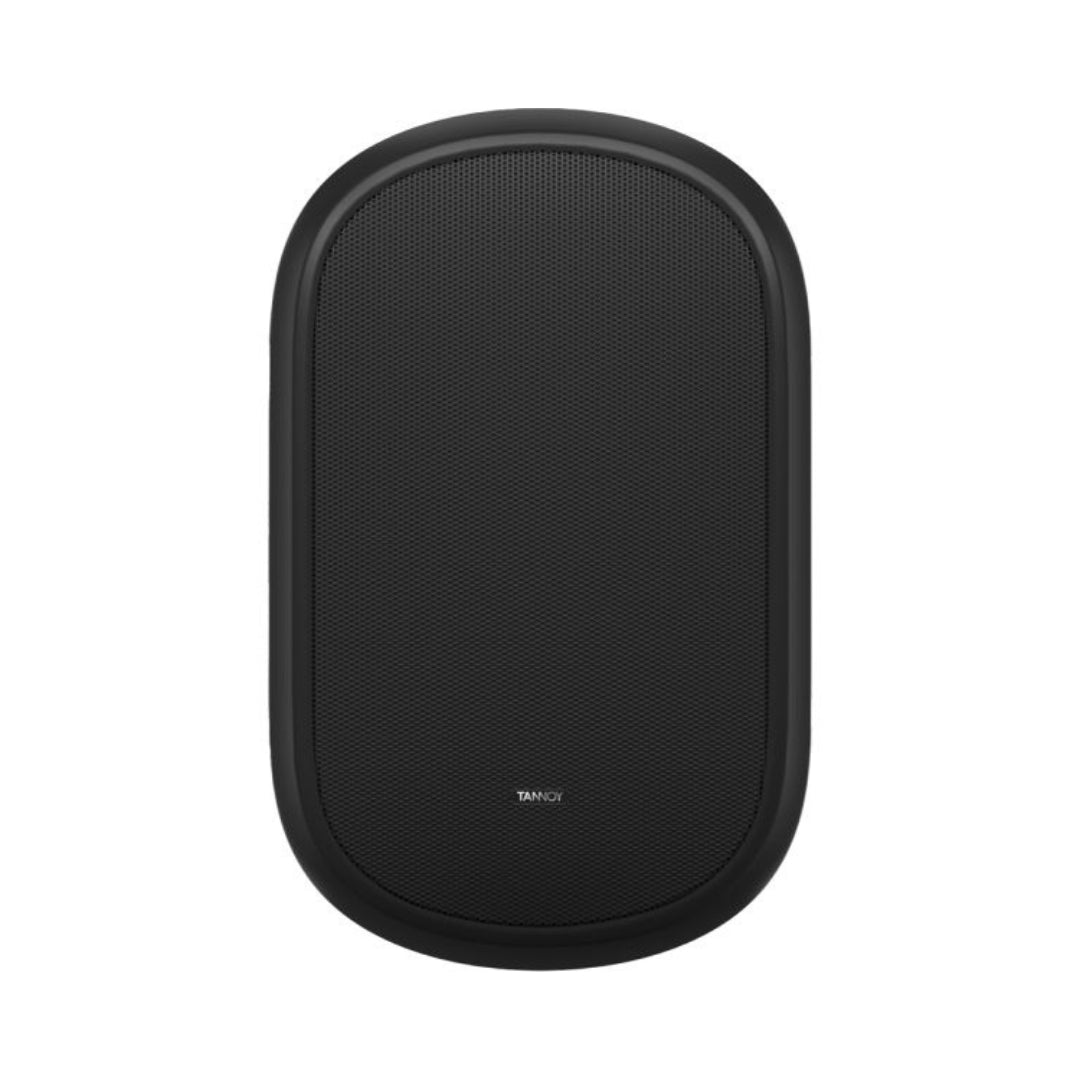

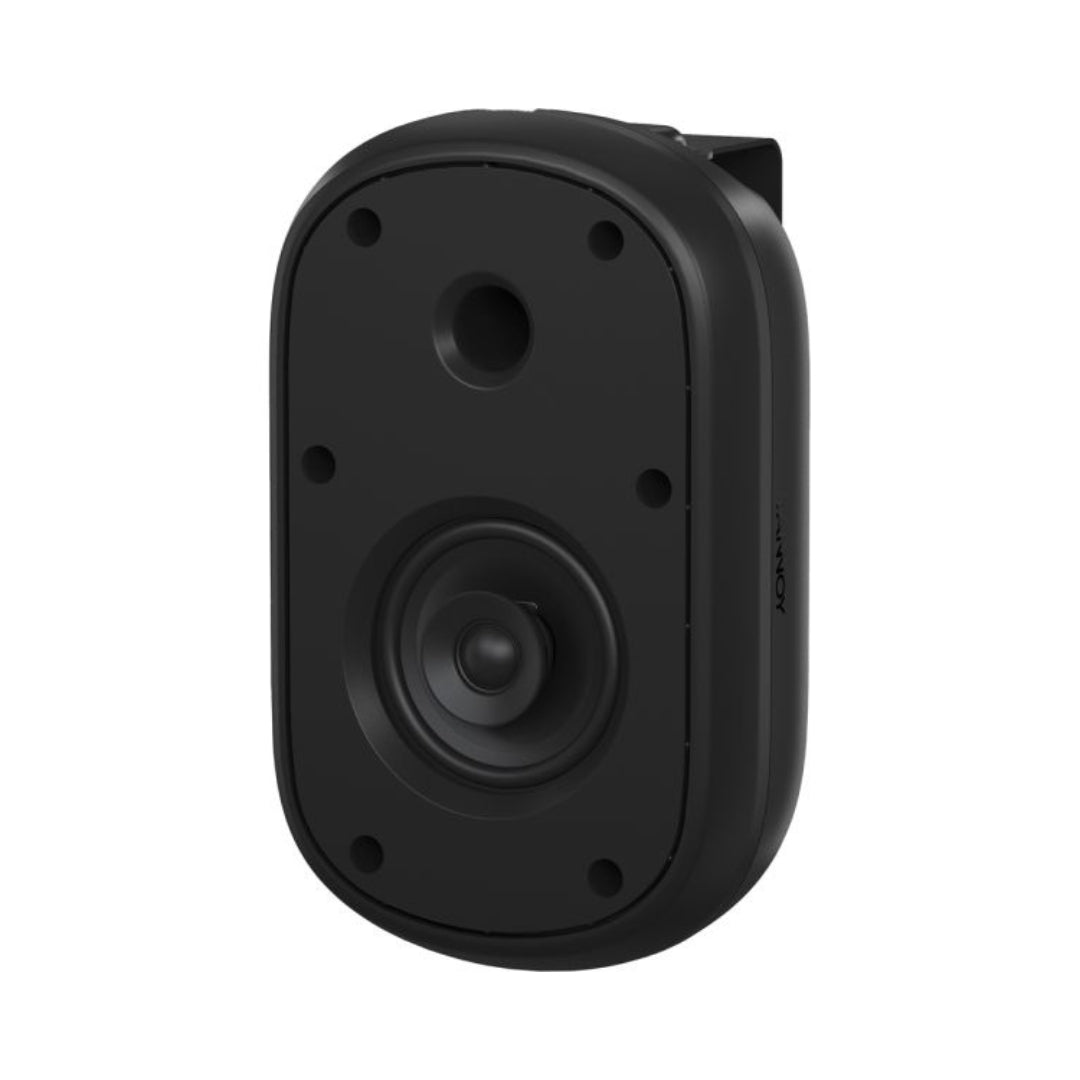

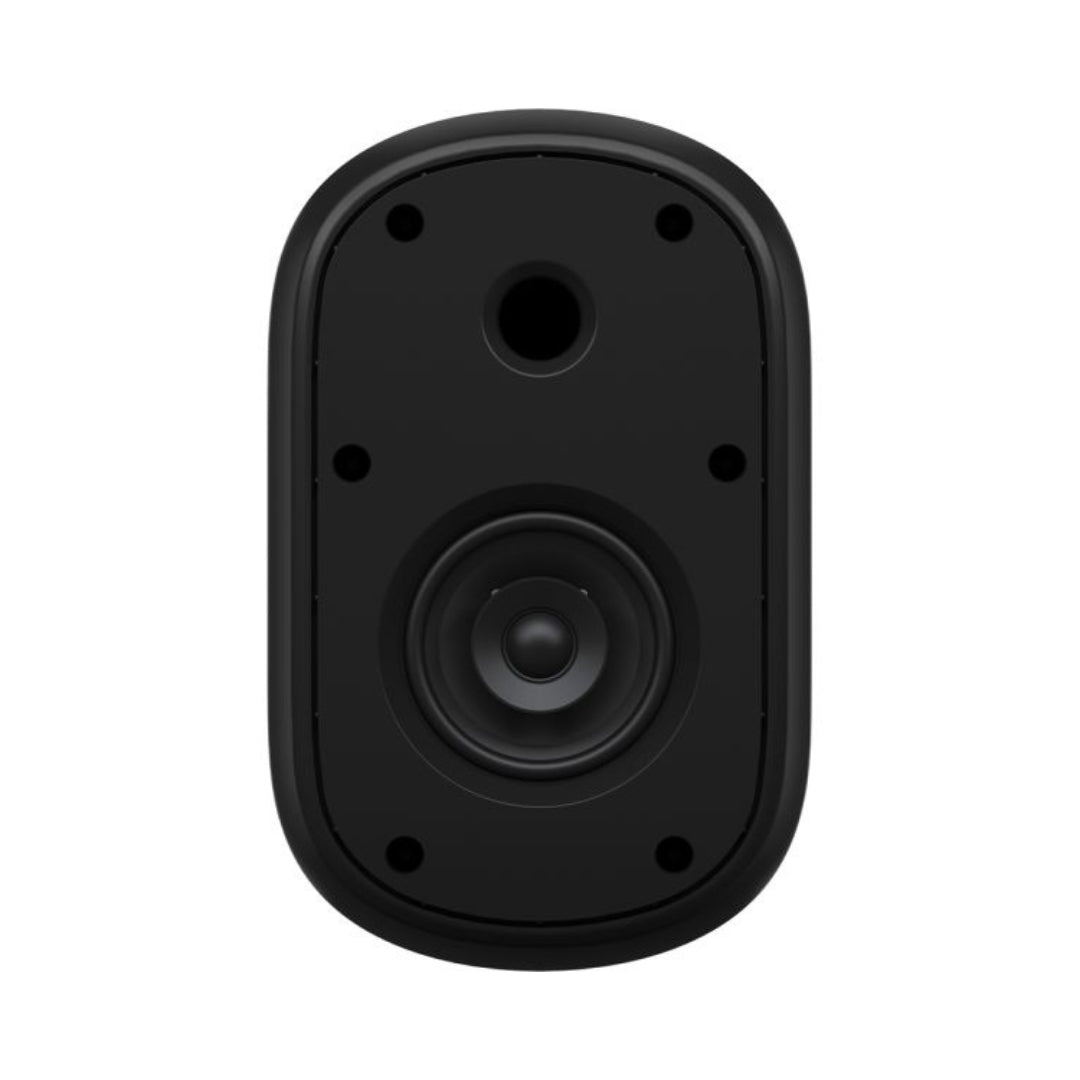

Tannoy DVS 401 4-Inch Commercial Ceiling Speaker

The Tannoy DVS 401 is a compact, high-performance surface-mount loudspeaker designed for both indoor and outdoor applications. With an IP64 weather rating, it offers exceptional durability and audio quality, making it ideal for environments exposed to dust and moisture. Whether it's used in restaurants, hotels, houses of worship, or commercial spaces, the DVS 401 ensures clear, high-quality sound with wide frequency response and low distortion. Its rugged design and robust performance make it an excellent choice for both background and foreground music systems, providing clear music and speech reinforcement.

Specifications:

Performance

• Frequency response (-3 dB): 80 Hz - 20 kHz
• Frequency response (-10 dB): 70 Hz - 20 kHz
• System sensitivity (1 W @ 1 m): 82 + 2 dB
• Dispersion (-6 dB): 107 degrees conical averaged 1 kHz - 10 kHz
• Transducers: Coaxial
• Low frequency: 100 mm (4.00") paper cone with coating
• High frequency: 20 mm (0.79')
• Crossover: 3250 Hz + 10%
• Directivity (Q): 4.8 averaged 1 kHz to 10 kHz
• Directivity (DI): 6.6 averaged 1 kHz to 10 kHz
• Rated Maximum SPL: 96 dB (average), 102 dB (peak)

Transformer

• Transformer Taps:
  • 70 V: 25 W/ 12.5 W / 6.3 W / 3.2 W / OFF and LOZ low impedance operation
  • 100 V: X / 25 W / 12.5 W / 6.3 W/ OFF and LOZ low impedance operation
• Maximum wire gauge for connector: 2.5 mm CSA (AWG12)
• Safety Agency Ratings: UL 1480A, EN54-24:2008

Power Handling

• Average: 25 W
• Programme: 50 W
• Peak: 100 W
• Recommended amplifier power: 50 W @ 8 Ohms
• Nominal impedance: 8 Ohms

Physical

• Enclosure: UV and weather resistant UL 94 V0 ABS
• Weather Rating: IP64
• Grille: Aluminium, painted
• Connectors: Euroblock type removable locking connector with screw terminals with "link thru" facility

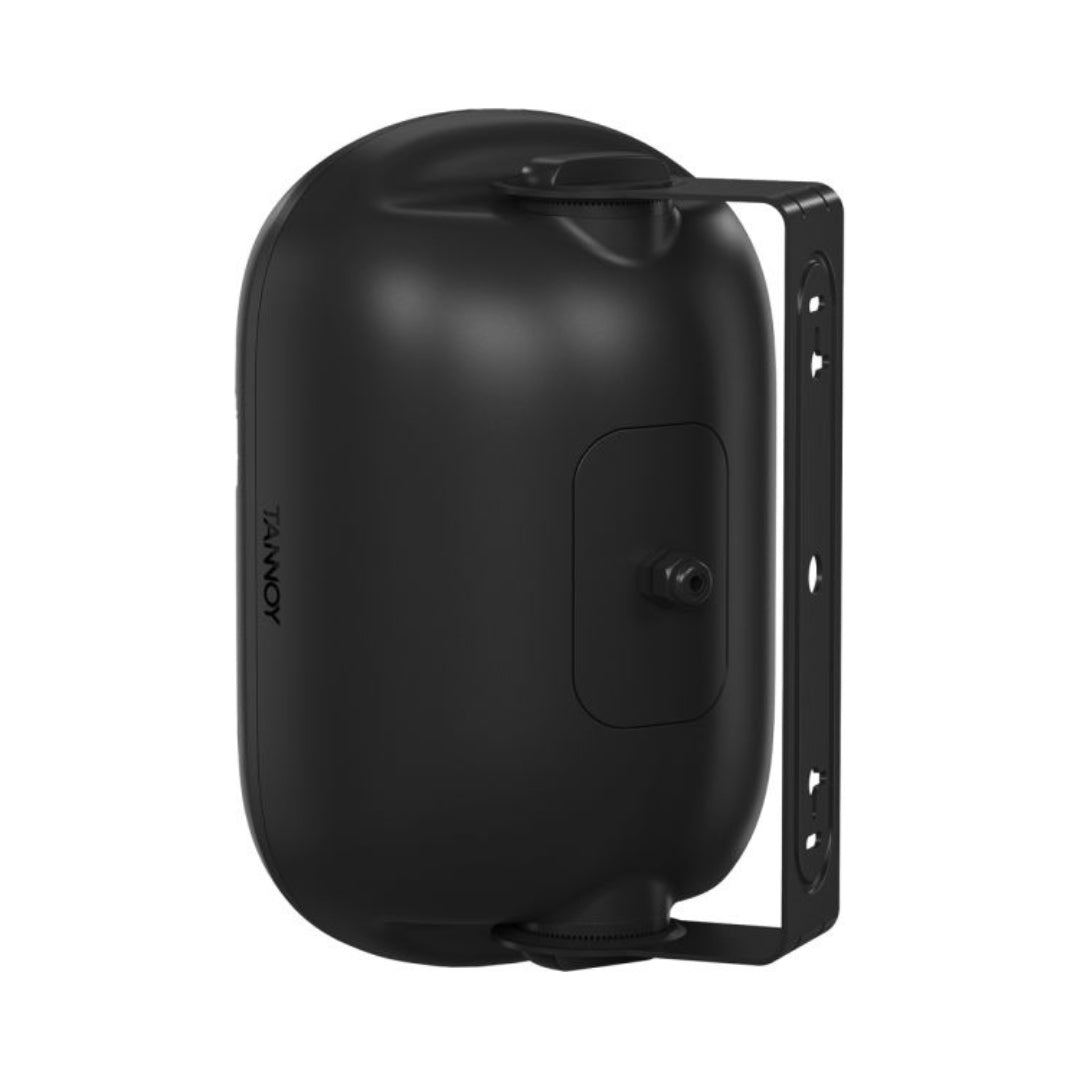

• Supplied Accessories: Yoke bracket
• Packed Quantity: 2
• Dimensions (HxWxD): 11.3 x 7.13 x 5.63 inches
• Net Weight: 9.9 lbs
• Shipped Weight: 11.7 lbs
